F o l d i n g  D o o r s


Weather Proof Folding Door


FN 100 System

         FN 100 System:  Mini Folding Glass Door

  • Mini folding door system with upper and lower aluminum profile 70mm

  • Stainless steel rollers especially designed for high durability

  • Upper and lower aluminum profile 70mm

  • Full length proofing

  • Minimization of parking space

  • Aluminum rail 52×59 with installed stainless steel beam for roller sliding

         FN 150 System:  Flexible Glass Door

  • Flexible glass door system with upper and lower aluminum profile 125mm

  • The locking of the system is achieved by the use of bolt or lock with double locking at the internal side of each panel

  • Weather proofing brush between top rail and upper profile & between lower profile and the floor

  • Heavy duty hinge between the panels

  • Without floor guide

  • Aluminum rail 52×59 with installed stainless steel beam for roller sliding

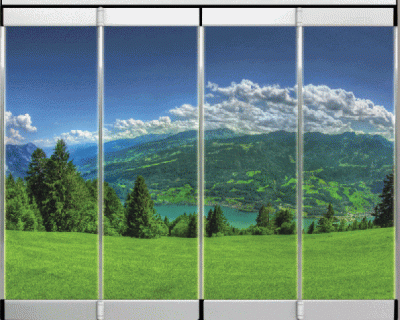

FN150.gif Folding Door System

FN 150 System


FN 200 System

 FN 200 System:  Folding Glass Door with Heavy Duty Rail

  • Folding door system INAL without floor guide

  • The panels fold with the use of heavy duty hinges on the upper and lower profile

  • Stainless steel rollers, especially designed for high durability

  • No parking area is required

  • Heavy duty hinge between the panels

  • Bolt or lock with double locking mechanism at the internal side of the panel

  • Heavy duty aluminum rail 70×80 with stainless steel sliding beam

  • STRENGTH TEST: 3.450kgr (165/049.01-1 N.T.U.A.)

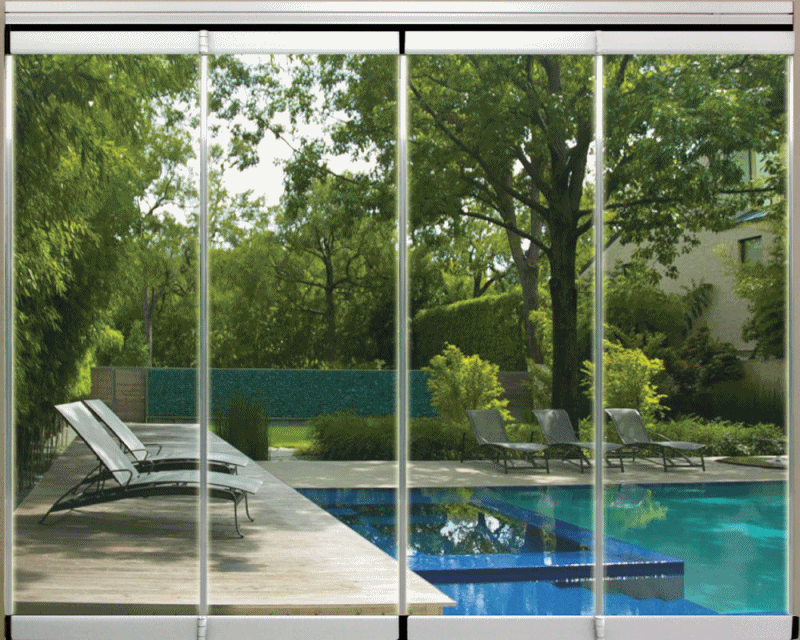

TOG Frameless Folding Door System



A frameless folding door system for 8 to 10mm glass sheets of up to 75kg per sheet.  Bottom running system with no extra overhead support needed and no uprights to spoil views.  Can be installed in most existing TOG Folding doors.  This folding door system boasts an anti-lift feature and locks.  Extra tight with double-lip seals and effortless opening action.

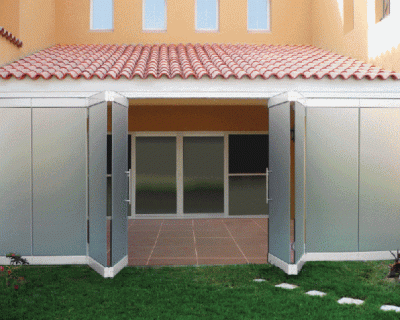

Vaso Folding.jpg

TOG Folding System
